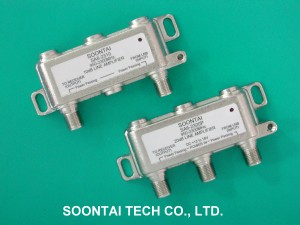

SA6 Series
Satellite In-Line Amplifier


    Features

* All SMD Parts

* Build-in High Pass Filter

* Flatness Gain

* Power Indication Lamp

* Power Insertion Port (alternative)

* Suitable for Analog and
   Digital satellite systems
Introduction

SA6 is our economic line amplifier series suitable for use in analog and digital satellite reception systems.

For applications notes, please refer to the notes on our SA line amplifier series.

Also Recommended

SA (Round Series)

SA2 (Power Insert Series)

SA3 (Mini Size Series)

SA4 (Dual Band Series)

  Items
Model Frequency Range Gain Ports
SA6-2310 950 - 2300 MHz 10 dB 2
SA6-2320 950 - 2300 MHz 20 dB 2
SA6-2310P 950 - 2300 MHz 10 dB 3
SA6-2320P 950 - 2300 MHz 20 dB 3

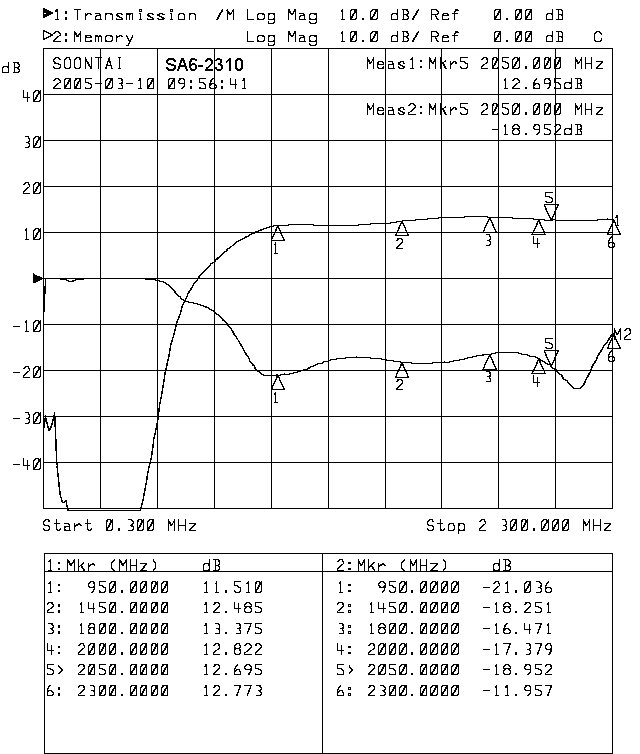

  Electrical Curve ( SA6-2310 )

Gain and Input Return Loss
SPAN 2300MHz
Fig 1
Output Return Loss
SPAN 2300MHz
Fig 2
  General Specifications
  Item SA6-2310 SA6-2310P SA6-2320 SA6-2320P
  Ports 2 3 2 3
  Impedance 75 ohm 75 ohm
  Frequency Range 950-2300MHz 950-2300MHz
  Gain (950-2300MHz) 12dB (typ) / 10dB (min) 20dB (typ) / 17dB (min)
  Return Loss 14dB (typ) 14dB (typ)
  Output Power (P1dB) 7dBm (max) 10dBm (max)
  Supply Voltage DC 12 to 18V DC 12 to 18V
  Power Passing DC 18V / 500mA (max) DC 18V / 500mA (max)
  Dimensions 16(H)x87(W)x42(D) mm 16(H)x87(W)x42(D) mm
  Net Weight 72g 73g 72g 73g
   * Specifications are subject to change without notice.
[Table 1]
