75 Ohm 3 GHz
IEC to N Adapters
|
|
|
|
Features
* Reference to IEC 61169-2 Standard Designed
* Excellent Return Loss
* Low Insertion Loss
* Excellent Mechanical Structure
* Good Mating and Unmating Force
* High Precision
* High Stability
* Exquisite Plating Quality
|
 |
|
|
|
|
Introduction

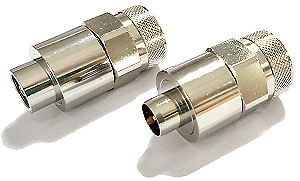

The AD03-71F75M and AD03-71M76M are high performance 75 ohm IEC to N adapters with high precision mechanical design that delivers excellent return loss up to 3 GHz, making it ideal for high quality signal transmission applications or laboratory measurement applications..
|
|
|
|
|
|
|
Items
| Model |
Bandwidth |
Connector Type |
| AD03-71F76M-0S01 |
3 GHz |
IEC-female to N-male |
| AD03-71M76M-0S01 |
3 GHz |
IEC-male to N-male |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
General Specifications
| Item |
AD03-71F76M-0S01 |
AD03-71M76M-0S01 |
| Connector Type |
IEC-female to N-male |
IEC-male to N-male |
| Impedance |
75 Ohm |
| Frequency Range |
300 kHz - 3 GHz |
| Return Loss |
20dB (min) |
| Body |
Nickel-plated Brass |
| Center Contact |
Gold-plated Phosphor Bronze |
| Insulator |
PTFE |
| Dimensions |
21(¢) x 40.3 mm |
21(¢) x 38.2 mm |
| Net Weight (approx.) |
53 g
| 48 g |
* Specifications may be change depending on the model or customer's requirement.
|
|
|
|
| |
|
