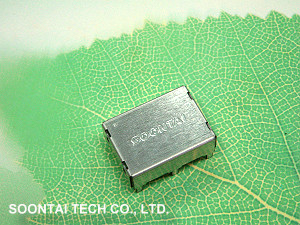

MX19 series
Set-top Box Diplexer
Cable Modem Diplexer




Features

* Support DOCSIS 3.1, 1218 MHz

* Flat Passband

* Low Loss

* High Rejection

* Impedance Matching Support

* Custom Design Available


Introduction

The MX19 is DIP type diplexer series designed for applications in DOCSIS 3.0/ 3.1 cable modems, EoC modem, digital set-top boxes, FTTx NID and residential gateways.

In addition to the models in the table below, custom designs are also welcome.

In addition, we can provide technical support for impedance matching if needs.


> More diplexers.

  Items
Model Band 1 Band 2 Area
MX19 - 42 / 54
MX19 - 42 / 88
MX19 - 204 / 258
5 - 42 MHz
5 - 42 MHz
5 - 204 MHz
54 - 1000 MHz
88 - 1000 MHz
258 - 1218 MHz
North American
MX19 - 65 / 85
MX19 - 65 / 108
MX19 - 65 / 120
5 - 65 MHz
5 - 65 MHz
5 - 65 MHz
85 - 1000 MHz
108 - 1000 MHz
120 - 1000 MHz
Europe
MX19 - 55 / 75
MX19 - 55 / 88
5 - 55 MHz
5 - 55 MHz
75 - 1000 MHz
88 - 1000 MHz
Japan
  General Specifications
  Item MX19 - 42 / 54
  Impedance 75 Ohm
  Frequency Range 5 - 1000 MHz
  Band 5 - 42 MHz 54 - 1000 MHz
  Insertion Loss 0.5 dB(typ) 0.5 dB(typ)
  Return Loss 16 dB(typ) 16 dB(typ)
  Rejection 50 dB(typ) 50 dB(typ)
  Dimensions 27(H) x 19.6(W) x 11.7(D) mm
  Net Weight 7.5 g
 * Specifications may be change depending on the model or customer's requirement.
