75 Ohm 2.5 GHz
F-type Terminators




Features

* Ergonomic Design

* Support DOCSIS 3.1

* Excellent Return Loss

* High Stability

* Precision Connector Thread

* Hermetic Housing

* High RFI Shielding

* Exquisite Plating Quality

75 Ohm 3GHz F-male Terminator

Introduction

The high performance TL1 terminator series features excellent relurn loss from DC to 2.5 GHz, making it ideal for TV, CATV, MoCA and satellite receiving systems.

In general applications, the TL1 terminator can be placed on the unused output port of the splitter, tap or wall outlet to eliminate impedance imbalance and reflection interference.

The excellent return loss and hermetic housing design of the TL1 series are also ideal for production line testing of communications products or laboratory measurement applications.

The TL1-75FB is a terminator with dc blocking function, which can be used in catv or satellite reception systems with DC power supply.


> More, high performance terminators

  Items
Model Bandwidth Connector DC Blocking
TL1-75F 2.5 GHz F-male No
TL1-75FB 2.5 GHz F-male Yes
  General Specifications
  Item TL1 - 75F TL1 - 75FB
  DC Blocking No Yes
  Voltage Withstanding   DC 100 V(max)
  Frequency Range DC - 2.5 GHz 5 - 2.5 GHz
  Impedance 75 Ohm

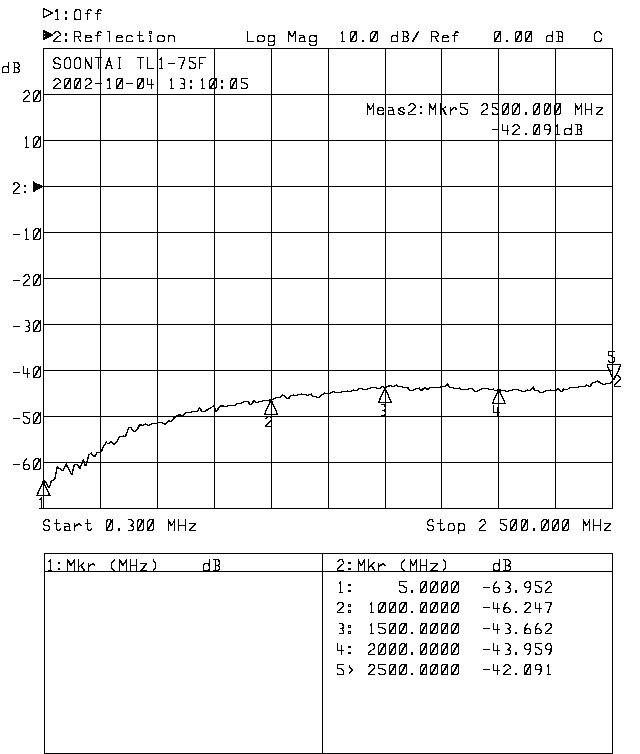

  Return Loss (< 1 GHz) 25 dB(min) 25 dB(min)
  Return Loss (< 2.5 GHz) 20 dB(min) 20 dB(min)
  Power Rating 100 mW(average)
  Dimensions 12.5(¢) x 16 mm
  Net Weight 7.2 g 7.5 g
 * Specifications may be change depending on the model or customer's requirement.
